Spiral Heat Exchanger

Spiral Heat Exchangers

What is a Spiral Heat Exchanger?

A spiral plate heat exchanger is a specially designed device used to efficiently transfer heat between two different fluids. It’s made by wrapping two long metal plates around a central core, creating two spiral-shaped channels – one for each fluid.



To ensure the fluids stay separate, the edges of the plates are securely welded. This prevents any mixing or bypassing between the two. The width of the plates and the space between them are adjusted very precisely. This helps in making sure that heat is transferred as effectively as possible and also makes maintenance easier. Some designs use welded spacer studs to maintain the gap between the plates, but some don’t need them.



The spiral heat exchanger has a circular design, and this along with its large surface area in relation to its size gives it an edge over other types of heat exchangers like the shell and tube.

Spiral Heat Exchangers

Spiral heat exchangers can be found in factories all over the world, solving difficult problems in many industries, including petrochemicals, oil refining, steelmaking, pulp and paper, mineral processing (metals, ore), wastewater treatment (municipal and industrial ), pharmaceuticals, vegetable oil refining and natural gas transportation. They excel in situations with scaling or limited space and pressure constraints.



In this landscape of advanced heat exchange solutions, HFM takes a prominent place. HFM specializes in the design, manufacture, and customization of heat exchangers, including spiral heat exchangers. With a legacy of expertise in plate heat exchanger technology, HFM is your trusted partner for innovative and reliable heat transfer solutions. Contact Us to learn more about our spiral heat exchangers.

Advantages of Spiral Heat Exchangers

Compact Efficiency:

Despite their small size, spiral heat exchangers offer high heat transfer capabilities, making them suitable for space-constrained installations.



High Thermal Efficiency:

The spiral design maximizes heat transfer, resulting in higher thermal efficiency compared to many conventional heat exchanger designs.



Self-Cleaning Effect:

The continuous flow minimizes fouling and scaling, reducing maintenance needs and ensuring consistent performance.



Versatility in Applications:

Spiral heat exchangers operate under various conditions, making them suitable for industries like chemical processing, HVAC, and power generation.

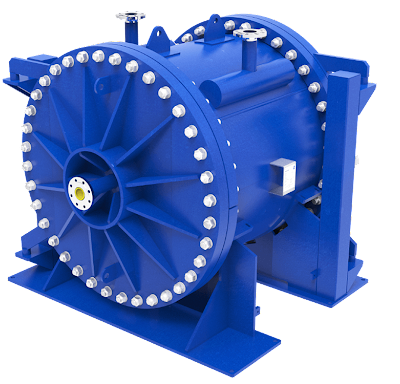

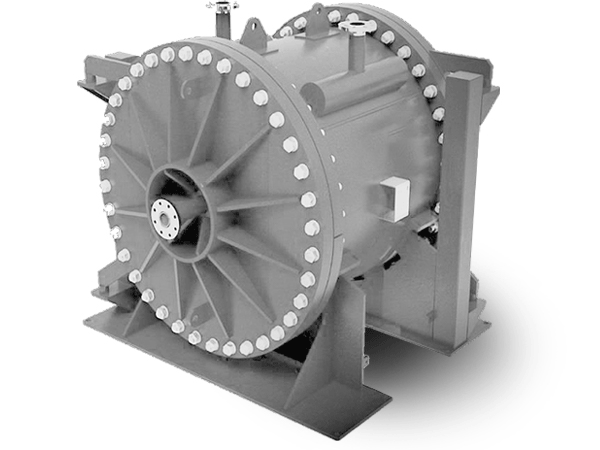

HFM Spiral Plate Heat Exchanger

Applications of Spiral Heat Exchangers

Spiral heat exchangers have established themselves as indispensable tools across a diverse range of industries. Their unique design and efficient heat transfer capabilities make them the preferred choice for several critical applications.

Industry-specific Use Cases:

Petrochemicals and Oil Refining

In the petrochemical and oil refining industries, where high temperatures and corrosive materials are commonplace, spiral heat exchangers excel. They play a vital role in processes like crude oil distillation, natural gas processing, and more.



Steelmaking and Metallurgy

In the steelmaking and metallurgical industries, where precise temperature control is crucial, spiral heat exchangers ensure efficient heat exchange in operations like steel casting and heat treatment.



Pulp and Paper Production

Spiral heat exchangers find extensive use in the pulp and paper industry. They are instrumental in processes such as paper drying, where precise temperature regulation is essential.



Mineral Processing (Metals, Ore)

In mineral processing, spiral heat exchangers facilitate efficient heating and cooling in processes like ore smelting and refining.



Other than the use cases mentioned above, there are other recommended application of spiral heat exchangers.

Recommended Applications

Hydrocarbon Processing



Oil Refining & Petrochemicals



Heavy Oil Extraction

Pulp & Paper



Steel & Coke Oven Gas



Metals, Mining & Minerals

Edible Oils & Oleochemicals



Pharmaceuticals & Biotech



Sugar & Alcohol

Renewable Energy



Biogas Production



EPC Contractors

HFM Spiral Heat Exchanger Industry Applications

Why Choose HFM Spiral Heat Exchangers?

When it comes to selecting a heat exchanger for your critical processes, the choice is paramount. Here are the reasons why HFM spiral heat exchangers stand out:

1. Customization Options

We understand that every industry and every process has its unique requirements. That’s why we offer a range of customization options for our spiral heat exchangers. Whether it’s specific materials, dimensions, or configurations, we work closely with you to tailor a solution that precisely fits your needs.



2. Materials and Quality Assurance

Quality is at the core of our manufacturing process. We use only the highest-grade materials to ensure the durability and performance of our spiral heat exchangers. Rigorous quality checks are implemented at every stage of production, guaranteeing that each unit meets our exacting standards.

3. Technical Expertise and Support

Our team of experts brings a wealth of technical knowledge and experience to the table. From the initial design phase to ongoing maintenance, we provide comprehensive support at every step of the way. We understand the intricacies of heat exchange processes and can offer valuable insights to optimize your operations.



4. Solution Design Expertise

HFM offers a specialized service in solution design. If you have specific requirements or application in mind, we can work closely with you to develop a comprehensive solution. For example, if you’re setting up a wort cooling system in a brewery, we’ll assess your needs and recommend the exact equipment and heat exchangers required for optimal performance.

With a commitment to customization, quality, technical expertise, and comprehensive solution design, HFM spiral heat exchangers are engineered to deliver reliable and efficient performance, even in the most demanding environments.

Comparing Spiral Heat Exchangers to Other Types

In the domain of heat exchangers, distinct configurations cater to specific operational needs. Among these, spiral heat exchangers present a unique proposition. Unlike conventional plate and shell & tube exchangers, spirals excel in compactness without compromising thermal efficiency. Their helical structure allows for substantial heat exchange within a confined footprint, making them particularly suitable for space-constrained environments.



Moreover, spiral heat exchangers demonstrate superior thermal efficiency. The spiral geometry induces turbulence in fluid flow, ensuring optimal contact between mediums. Consequently, these devices achieve heightened thermal transfer rates, surpassing many conventional designs. Additionally, their continuous flow configuration mitigates fouling and scaling, minimizing maintenance demands and ensuring consistent performance, particularly pertinent when dealing with potentially fouling fluids.



In practical terms, spiral heat exchangers stand out for their space-saving attributes. Relative to their shell and tube counterparts, they necessitate less floor space for installation. Their circular configuration and compact dimensions render them an appealing choice in scenarios where spatial optimization is imperative. Additionally, their efficacy in heat transfer contributes to noteworthy energy savings, translating to long-term cost-effectiveness.



In summary, while plate and shell & tube exchangers have their respective merits, spiral heat exchangers carve a niche in applications necessitating compactness, heightened thermal efficiency, and reduced maintenance. Their unique design renders them indispensable across a spectrum of industries.


HFM Plate Heat Exchanger

Contact Us for Your Heat Exchanger Solutions

Ready to optimize your heat exchange processes with Spiral Heat Exchangers? Contact our experts at HFM Plate Heat Exchanger for tailored solutions that meet your specific industry needs. Whether you have specific project requirements or need guidance on the best heat exchanger solution for your application, we’re here to assist. Request a quote or contact us today.
