HFM Brewery Plate Heat Exchanger
HFM offers advanced solutions and high-quality brewery plate heat exchanger specifically designed for the brewing industry, allowing both traditional and modern breweries to effectively and efficiently execute key processes. Our cutting-edge technology and expertise in heat transfer enable us to provide optimal solutions that not only ensure top-quality results but also reduce operating costs to a minimum.
By partnering with HFM, breweries can achieve improved production efficiency and maximize their return on investment. Contact Us to upgrade your Brewery Heat Exchanger for beer production today.

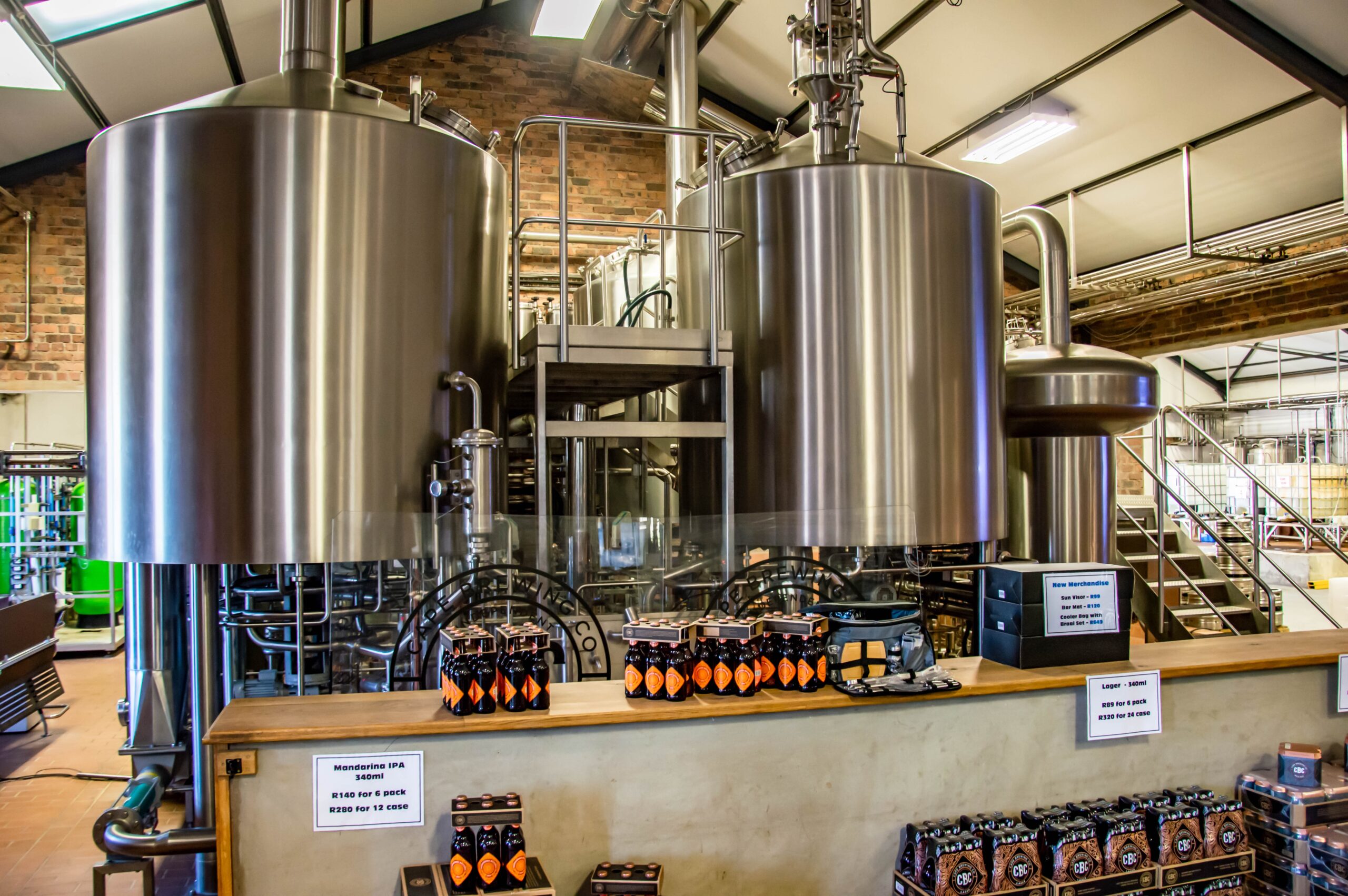

General Steps of Brewing Process
1. Malting
2. Milling
3. Gelatinisation
4. Saccharification
5. Wort Separation/Filtration
6. Boiling
7. Cooling and Fermentation
8. Maturation and Conditioning
9. Carbonation
10. Packaging
1. Malting
Malting is the process of preparing cereal grains, such as barley, for brewing. It involves soaking the grains in water to initiate the germination process, followed by drying and heating to halt the process at a specific point.
The goal of malting is to activate enzymes within the grain that will later convert the starches into fermentable sugars during the brewing process. During germination, the grains produce enzymes that break down the complex carbohydrates into more manageable sugars, which are then utilized by the growing seedling. By stopping the germination process at a specific point, the maltster can control the level of enzymatic activity and the flavour and colour of the malt.
Malted grains are a key ingredient in beer brewing, providing fermentable sugars and contributing to the flavour, colour, and aroma of the finished product.
2. Milling
Milling is the process of crushing the malted barley (and other grains, if used) into a coarse powder, called grist, which is then mixed with water to extract the fermentable sugars. The main purpose of milling is to break open the husks of the malted barley to expose the starchy endosperm inside, which is what the yeast will consume during fermentation to produce alcohol and carbon dioxide.
The milling process typically involves feeding the malted barley into a machine called a malt mill, which uses a series of rollers to crush the grains. The rollers are adjustable to achieve the desired size of the grist, which can vary depending on the recipe and the type of beer being brewed. The grist is then stored in a grist hopper until it is needed for the next step in the brewing process.
3. Gelatinisation
Gelatinisation is a crucial process in the production of beer as it converts starch into simpler sugars, such as glucose and maltose, which can be fermented by yeast to produce alcohol. The process involves mixing mashed malt or grains with water in a gelatinisation pot, which is a large metal container with hot water and steam inlets, and is equipped with devices such as stir bars, paddles or propellers, and temperature and control devices.
The mashed malt and water are heated and boiled in the gelatinisation pot, activating naturally occurring enzymes that break down the complex starch molecules into simpler sugars.
The temperature and duration of the boiling are carefully controlled to ensure that the starch is fully converted to sugars without causing any unwanted chemical reactions or flavors. Typically, the gelatinisation process takes place at temperatures ranging from 62-65°C (144-149°F) for 60-90 minutes.
Once the gelatinisation process is complete, the resulting liquid is called wort. The wort is then sent to a filtration vessel called a separation vessel. In the separation vessel, the wort is separated from the malt husk, and any other solids that may be present.
The separated wort is then pumped into a boiling pot, where hops and sugar are added to the mixture. The mixture is then boiled for a period of time, typically 60-90 minutes. The boiling process helps to dissolve the sugars and hops and also sterilizes the mixture by killing any microorganisms that may be present.
After boiling, the mixture is then pumped into a cooling tank, where it is rapidly cooled to a temperature of around 20°C (68°F) to facilitate fermentation. The cooled wort is then pumped into a fermentation vessel, where yeast is added to the mixture to initiate fermentation.
The gelatinization process typically involves heating the mixture of mashed malt and water in a gelatinization pot or vessel. The pot is often equipped with a heat exchanger to control the temperature and ensure even heating.
The brewery heat exchanger helps to maintain a consistent and controlled temperature during the gelatinization process, which is crucial for optimal starch conversion and enzyme activity. It also helps to prevent scorching or overheating of the mixture, which could negatively impact the flavour and quality of the final beer product.
4. Saccharification
Saccharification is the process that follows gelatinisation in the production of beer. During this process, the simple sugars that were created during the gelatinisation process are further broken down into fermentable sugars. This process is accomplished by adding enzymes, such as alpha and beta amylase, to the wort in a process called mashing.
Mashing typically takes place in a mash tun, which is a vessel that is designed to hold the grain and water mixture at a consistent temperature for a period of time. During the mash, the enzymes in the malted grain begin to break down the starches into sugars. The mash is typically held at a temperature range of 63-70°C (145-158°F) for 60-90 minutes, depending on the desired sugar profile of the beer.
The use of a heat exchanger is not typically necessary during the saccharification process, as the temperature is controlled by the mash tun. However, some modern breweries may use a heat exchanger to more precisely control the temperature of the mash or to speed up the process.
After the mash, the wort is transferred to a lautering vessel, where the remaining solids are separated from the liquid wort. The liquid wort is then boiled in a kettle along with hops and other ingredients to add flavour and aroma to the beer. During the boiling process, any remaining enzymes are denatured and the proteins in the wort are coagulated and removed.
Overall, the saccharification process is a crucial step in the beer-making process, as it helps to break down complex starches into simple, fermentable sugars that can be converted into alcohol by yeast.
5. Wort Separation/Filtration
Wort filtration or separation is an important step in the beer brewing process. It involves separating the liquid wort from the solids (grain husks, hops, etc.) that were used in the brewing process. This process is critical to the quality of the final beer product, as it removes unwanted flavours and aromas and helps to clarify the beer.
There are several methods of wort filtration/separation, including:
Lautering: This is the most common method of wort filtration used in commercial breweries. It involves transferring the wort from the mash tun to a vessel called a lauter tun, where the solids are separated from the liquid by gravity. The wort is then transferred to the boil kettle for further processing.
Filtration: This method involves passing the wort through a filter medium, such as diatomaceous earth or a membrane filter, to remove the solids. This method is commonly used in smaller breweries and home brewing setups.
Centrifugation: This method involves spinning the wort at high speed in a centrifuge to separate the solids from the liquid. This method is commonly used in larger commercial breweries and can produce a very clear wort.
Regardless of the method used, the goal of wort filtration/separation is to produce a clear liquid wort that is free of unwanted flavours and aromas. Once the wort has been filtered, it can be boiled with hops, cooled, and fermented to produce beer.
6. Boiling
Boiling is a crucial step in the brewing process that is carried out after mashing and lautering. During boiling, the wort (a liquid extracted from the mash) is heated to its boiling point and kept at that temperature for a period of time. Boiling serves several purposes in the brewing process:
Sterilization: Boiling kills any microorganisms that may be present in the wort, ensuring that the beer will not become contaminated during fermentation.
Enzyme deactivation: Any enzymes that are still active in the wort after mashing are deactivated during boiling. This prevents the wort from becoming too thin and ensures that the beer will have the desired body and mouthfeel.
Hop extraction: Hops are added to the boiling wort to impart bitterness and aroma to the beer. The longer the hops are boiled, the more bitterness they will impart to the beer. Aromatics are extracted towards the end of the boil.
Colour development: Boiling also helps to develop the colour of the beer. The longer the wort is boiled, the darker the beer will be.
Boiling usually lasts for about 60-90 minutes, depending on the recipe and the desired characteristics of the beer. After boiling, the wort is quickly cooled to a temperature that is suitable for yeast fermentation. A brewery heat exchanger can help maintain consistent temperatures during the boiling process, improving the quality and efficiency of the overall process.
7. Cooling and Fermentation
Cooling and fermentation are crucial steps in the brewing process that follow boiling and wort separation.
Cooling:
After boiling, the wort is quickly cooled to a temperature that is suitable for yeast fermentation. This is important because yeast cannot survive at high temperatures and can die if the wort is not cooled properly.
There are several methods for cooling the wort, including the use of a brewery heat exchanger, which is a device that allows the wort to be rapidly cooled by passing it through a series of tubes that are surrounded by cold water. This not only prevents overcooking and caramelization of the wort but also reduces the time it takes to cool the wort to the desired fermentation temperature, which is crucial for yeast health and flavor development.This method is efficient and helps to preserve the delicate flavours and aromas of the wort.
Fermentation:
Once the wort has been cooled, it is transferred to a fermentation vessel and yeast is added. The yeast consumes the sugars in the wort and produces alcohol and carbon dioxide as by-products. The fermentation process typically lasts for several days to a few weeks, depending on the style of beer being produced and the conditions under which it is being fermented.
During fermentation, the temperature of the wort is carefully controlled to ensure that the yeast is working at an optimal rate and that the beer develops the desired flavour and aroma characteristics.
After fermentation is complete, the beer is typically aged or conditioned for a period of time to allow the flavours and aromas to mature and develop further. Finally, the beer is carbonated, bottled or kegged, and packaged for distribution.
8. Maturation and Conditioning
Maturation and conditioning are two important stages in the brewing process that take place after fermentation is complete. Maturation, also called lagering, involves aging the beer at a cool temperature for several weeks or months.
During this time, yeast and other particles in the beer settle to the bottom of the vessel, creating a clearer and more stable beer. This also allows for the flavours to blend together, resulting in a smoother taste. The temperature for maturation varies depending on the type of beer.
After maturation, the beer undergoes conditioning, the process to further age at a slightly higher temperature. This allows the beer to develop a more complex flavour profile and ensures that it is fully carbonated. Carbonation can be achieved naturally through secondary fermentation in the bottle or keg, or through the use of a carbonation stone or other equipment.
During conditioning, the beer is chilled to a low temperature to encourage the yeast and other particles to settle out, a process known as “cold crashing.” The length of conditioning time varies depending on the type of beer and desired characteristics.
Brewery Plate heat exchanger can be used in the maturation and conditioning process to quickly chill the beer before it undergoes carbonation. This prevents the formation of chill haze and other off flavours that can occur when beer is chilled too slowly. Glycol jacketed fermenters and bright tanks can also be used to control the temperature during maturation and conditioning, ensuring that the beer is kept at the correct temperature for the entire process.
9. Carbonation
Carbonation is the process of dissolving carbon dioxide (CO2) into a liquid, which in brewing refers to the addition of carbon dioxide to beer to give it its signature effervescence and bubbles. Carbonation can occur naturally through the secondary fermentation process or can be added artificially through a carbonation system.
In natural carbonation, the beer is transferred to a sealed vessel, such as a bottle or keg, and a small amount of sugar is added. The remaining yeast in the beer consumes the sugar and produces CO2 as a by-product, which dissolves into the beer, creating carbonation. The vessel is then stored at a temperature suitable for the yeast to ferment the sugar and carbonate the beer.
In artificial carbonation, the beer is transferred to a pressurized vessel, typically a carbonation tank, and carbon dioxide is directly injected into the beer. The pressure forces the CO2 to dissolve into the beer, creating carbonation. The amount of CO2 added can be controlled to achieve the desired level of carbonation.
Carbonation plays an important role in the overall taste and mouthfeel of beer. The level of carbonation can affect the perceived bitterness, sweetness, and acidity of the beer. The type of carbonation, whether natural or artificial, can also affect the flavour and aroma of the beer.
After carbonation, the beer is usually allowed to rest for a period of time, referred to as conditioning or aging, to allow the flavours to blend and mellow. Conditioning can range from a few days to several weeks, depending on the beer style and desired characteristics.
Overall, carbonation is a crucial step in the brewing process that adds to the character and quality of the beer.
10. Packaging
Packaging in brewing refers to the process of transferring the finished beer into containers, such as bottles, cans, kegs, or casks, for distribution and sale to consumers. Proper packaging is important to ensure that the beer is preserved, protected from light, oxygen, and contamination, and maintains its desired flavour, aroma, and carbonation levels.
The packaging process typically follows the steps of fermentation, maturation, and conditioning. After the beer has been conditioned and is ready for packaging, it is transferred from the conditioning vessel to a packaging tank. The packaging tank is a pressurized vessel that holds the beer and allows it to be carbonated before it is filled into individual containers.
The choice of packaging material depends on a variety of factors, such as the desired shelf life, intended market, and budget. Glass bottles and aluminium cans are the most common types of packaging used in commercial brewing. Kegs and casks are also popular for serving beer on tap in bars and restaurants.
Before packaging, the containers are typically cleaned and sanitized to remove any contaminants that could spoil the beer or affect its flavour. The beer is then transferred into the containers using a filling machine, which is designed to minimize the amount of oxygen introduced into the beer during the filling process. Oxygen can cause beer to spoil and lose its flavour and aroma.
Once the beer has been filled into the containers, it is typically labelled and packaged into cases or pallets for distribution. The labelling includes information such as the beer name, style, alcohol content, and ingredients. In some countries, it is also required to include warning labels regarding alcohol consumption.
Storage conditions for packaged beer are also important to maintain the quality and freshness of the beer. Beer should be stored at cool temperatures, away from direct sunlight and heat sources, to prevent spoilage and skunking. The ideal temperature for storing beer is around 4-10°C.
Overall, proper packaging is an important aspect of the brewing process to ensure that the beer reaches consumers in the best possible condition, with all its desired qualities intact.
Application of Brewery Heat Exchanger in Beer Production
Heat exchangers are used in various stages throughout the brewing process to regulate and control the temperature of the beer and other liquids. Here are some examples:
Wort cooling:
After the wort is boiled, it needs to be cooled down quickly before the yeast can be added. A plate heat exchanger can be used to rapidly cool the hot wort by exchanging its heat with cold water or glycol.
Fermentation temperature control:
During fermentation, the temperature needs to be maintained at a specific level to achieve the desired flavor and alcohol content. A glycol-jacketed fermenter with a heat exchanger can be used to precisely control the temperature of the fermenting beer.
Maturation temperature control:
As discussed earlier, maturation involves aging the beer at a cool temperature for several weeks to several months. Plate heat exchangers can be used to chill the beer quickly before it is placed in the maturation vessel, ensuring that it reaches the correct temperature for the process.
Wort preheating:
In some cases, the wort may need to be heated up before it is boiled. A heat exchanger can be used to preheat the wort using hot water or steam.
Overall, heat exchangers play a crucial role in maintaining the correct temperatures throughout the brewing process, ensuring that the beer is of high quality and consistent in flavor.
Upgrade your brewery process with HFM’s high-quality brewery heat exchanger designed specifically for the brewing industry. Our advanced solutions and expertise in heat transfer enable us to provide optimal results while reducing operating costs. Contact Us today to learn more and take the first step towards improved production efficiency and maximum return on investment.
