For the convenience of our customers, HFM brings the Tool Package to you. These tightening tools will be your reliable companions in assembling plate heat exchangers.
For the convenience of our customers, HFM brings the Tool Package to you. These tightening tools will be your reliable companions in assembling plate heat exchangers.
Tips during operation:
Keep on tightening or loosening the spindle or long bolts.
The best operating area is the plate heat connection exchanger.
Types of plate heat exchanger clamper
The torque range of the pneumatic drive type:

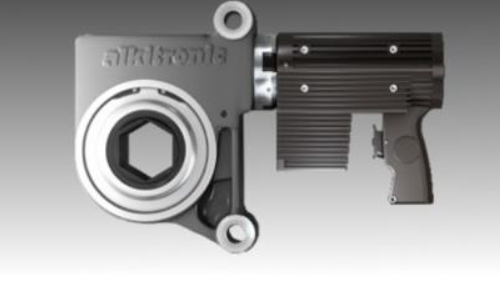

Alkitronic RCL 2 Gear torque amplifier, from 590 Nm to 4,840 Nm
Alkitronic CLS-SG, from 1,280 Nm to 3,780 Nm
The torque range of the electric drive type:
EF-R / EFCip-R / EF-SG / EFCip-SG, from 560Nm to 3,780Nm
Use two or more torque multipliers to tighten opposite angles.
Save time during long-term operation:
Radial gear (R) is carrying with high-performance worm driven.
Tangential gear (SG) is carrying with efficient positive gear, strong motor, cast aluminum gearbox.
Pneumatic model:
The best working environment for a pneumatic wrench is about 20 ℃, air pressure 2-7 bar and airflow 10-15 L / s.
The accuracy of the torque depends on the stability of the gas source.
Radial wrench model | Pneumatic drive | RCL | |||||||||||||||||
RCL | EFCip-R | EF-R | |||||||||||||||||
Type | RCL36 | RCL46 | RCL80 | EFCip-R 36 | EFCip-R 46 | EFCip-R 80 | EF-R 36 | EF-R 46 | EF-R 80 | ||||||||||
Geer Ⅰ Torque range(approximately) | Nm | 590-1730 | 630-1850 | 670-1975 | |||||||||||||||
Geer Ⅱ Torque range(approximately) | Nm | 1440-4235 | 1545-4535 | 1645-4840 | 560-3780 | 560-3780 | 560-3780 | 560-3780 | 560-3780 | 560-3780 | |||||||||
Wrench width | mm | 36 | 46 | 80 | 36 | 46 | 80 | 36 | 46 | 80 | |||||||||
height (approximately) | H | mm | 400 | 435 | 450 | 385 | 425 | 475 | 500 | 550 | 600 | ||||||||
width (approximately) | B/B1 | mm | 230/190 | 252/215 | 325/- | 230/190 | 252/215 | 325/- | 230/190 | 252/215 | 325/- | ||||||||
Bolt distance(approximately) | A1/A2 | mm | 100/128 | 112/145 | 156/194 | 100/128 | 112/145 | 156/194 | 100/128 | 112/145 | 156/194 | ||||||||
size (approximately) | X/Y | mm | 56/56 | 75/75 | 98/98 | 56/56 | 75/75 | 98/98 | 56/56 | 75/75 | 98/98 | ||||||||
size (approximately) | D | mm | 90 | 94 | 94 | 90 | 94 | 94 | 90 | 94 | 94 | ||||||||
weight (approximately) | kg | 12 | 12.5 | 20 | 12 | 14.5 | 21 | 16 | 14.5 | 24.5 | |||||||||
Geer Ⅰ ldling speed | rpm | 1 | 1 | 2 | 8 | 7 | 7 | 10 | 9 | 9 | |||||||||
Geer Ⅱ ldling speed | rpm | 3 | 3 | 6 | - | - | - | - | - | - |

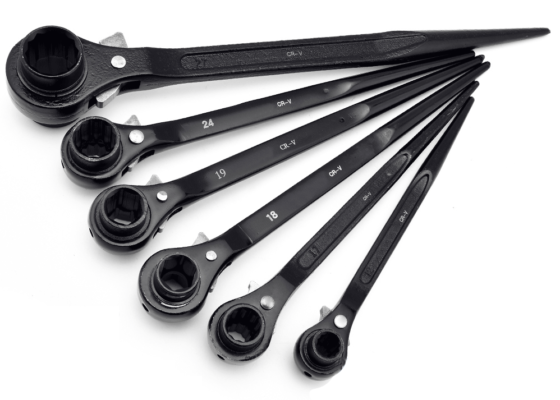

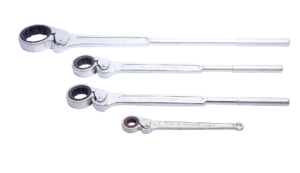

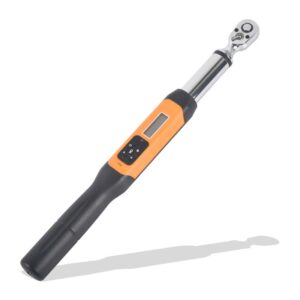

Ratchet wrench
The wrench is common tool for installation and removal, which is hand tool using the lever principle to screw bolts, screws, nuts and other thread holding bolts ,and nut opening or set of hole firmware. It is usually made of carbon or structural steel of alloy materials.
The wrench usually has an opening or socket with bolts or nuts at one or both ends.The bolt or nut will be twisted.When applying force to the handle in the direction of rotation of the thread.
Features
Made of stainless steel
High strength
Lightweight, portable
Full-body removable
Durable by large ratchet teeth
Long-term usage
Elegant in design
Flexibly replaceable

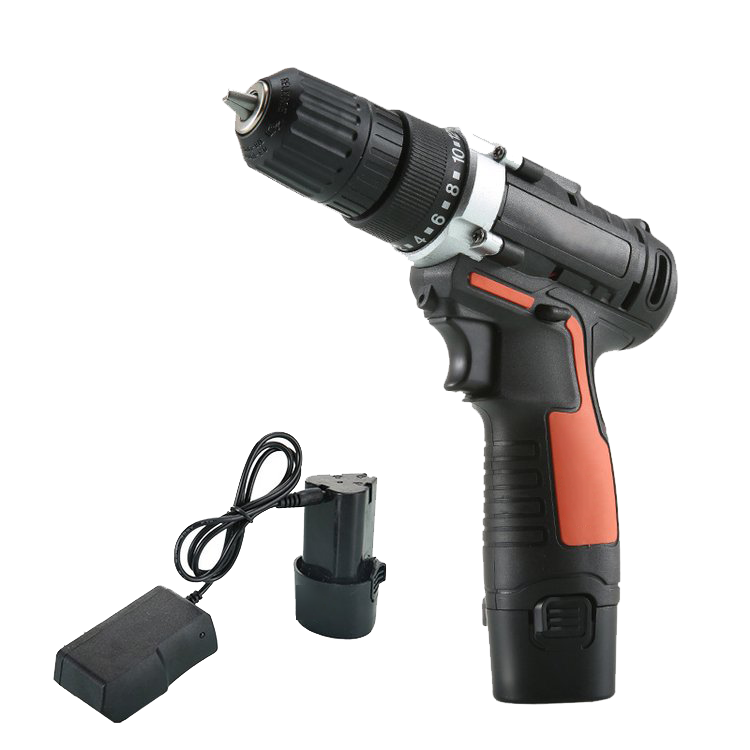

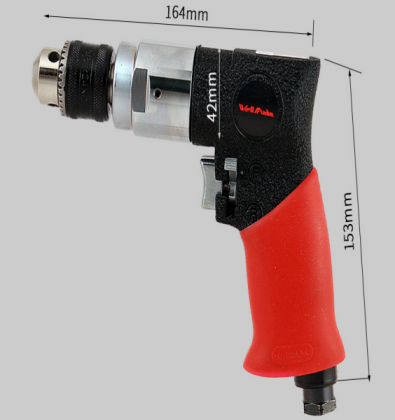

Hand drill gun-Wilmet
Features
Clip size: 3 / 8 ” in. (10 mm)
No-load rotating speed: 2,200 rpm
Length: 8 in. (203mm)
Net weight: 2.42 lbs (1.1 kgs)
Air air consumption: 6 (cfm) / 168 (l / min)
Operating air pressure: 90 psi (6.3 bar)
Internal diameter: 3 / 8 ” in. (10 mm)

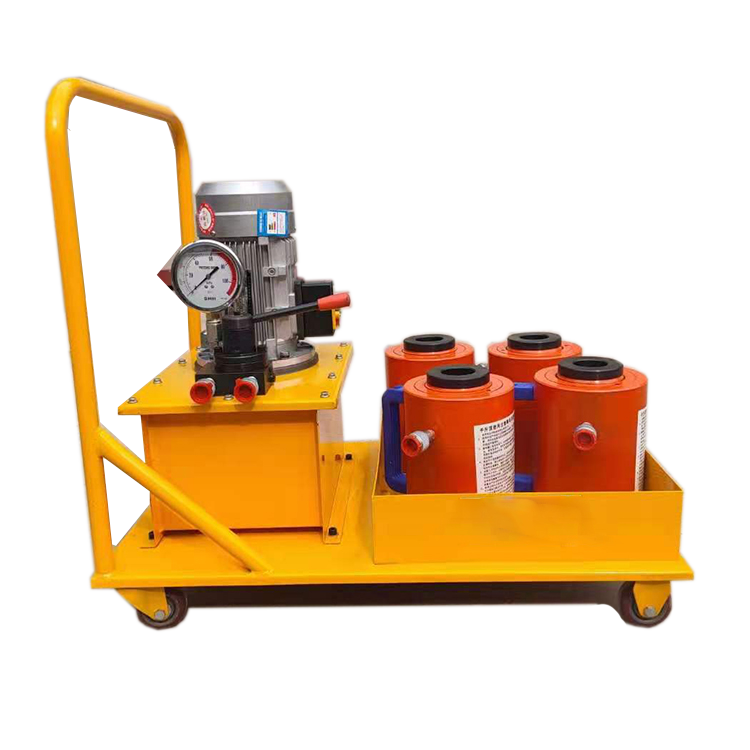

Hydraulic Wrench
If you are in charging of multiple running PHE, you might want a hydraulic wrench set as your assistant, it could help you release more labour and increase efficiency. Click the button below for more detail.
