Plate Heat Exchanger Spare Parts

One-Stop PHE Supplier for Multi-brand Full Model High Quality Gasket and Plate Replacement.

OEM Compatible and Custom Dimensions are Both Available. Global Distribution Online!

Plate Heat Exchanger Gaskets & Plates

HFM Plate Heat Exchanger Gaskets & Plates

HFM supplies high quality PHE spare parts, rubber gaskets and metal plates.

The customized dimension mould pressing and non-OEM but 100% compatible replacement of full models

are both available to meet client’s different requirements.

HFM gaskets and plates are specified to fit most plate heat exchanger makes and models for replacement.

◆ AHLA Gaskets & Plates ◆ GEA Gaskets & Plates  ◆ APV Gaskets & Plates  ◆ Sondex Gaskets & Plates
◆ Tranter Gaskets & Plates  ◆ Hisaka Gaskets & Plates  ◆ Vicarb Gaskets & Plates ◆ ViEX Gaskets & Plates
◆ Sigma API Gaskets & Plates ◆ Thermowave Gaskets & Plates ◆ Funke Gaskets & Plates ◆ Fischer Gaskets & Plates
◆ SWEP Gaskets & Plates ◆ Mueller Gaskets & Plates ◆ ITT Gaskets & Plates ◆ AGC Gaskets & Plates

Standard Materials and Types

Gaskets
  • Nitrile rubber (NBR)
  • EPDM
  • VITON
  • NBR HT
  • EPDM HT
  • FDA NBR
  • FDA EPDM

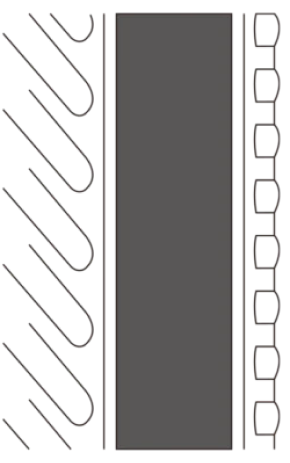

  • Glue-on

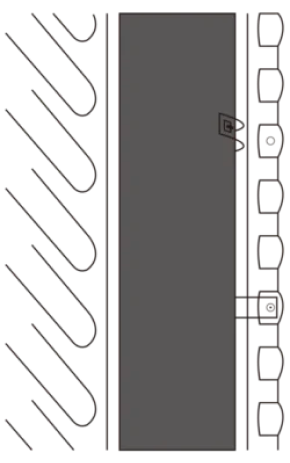

  • Snap-in

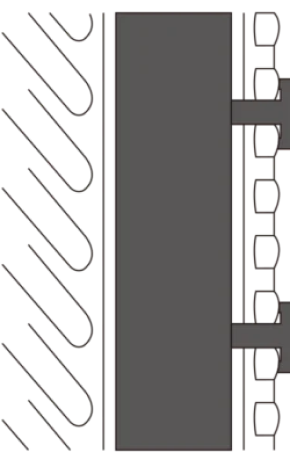

  • Clip-on
  • Hang-on
  • Paraclip

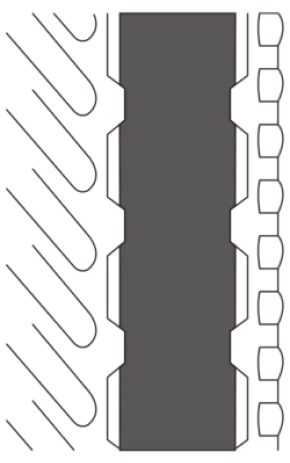

  • Sonderlock

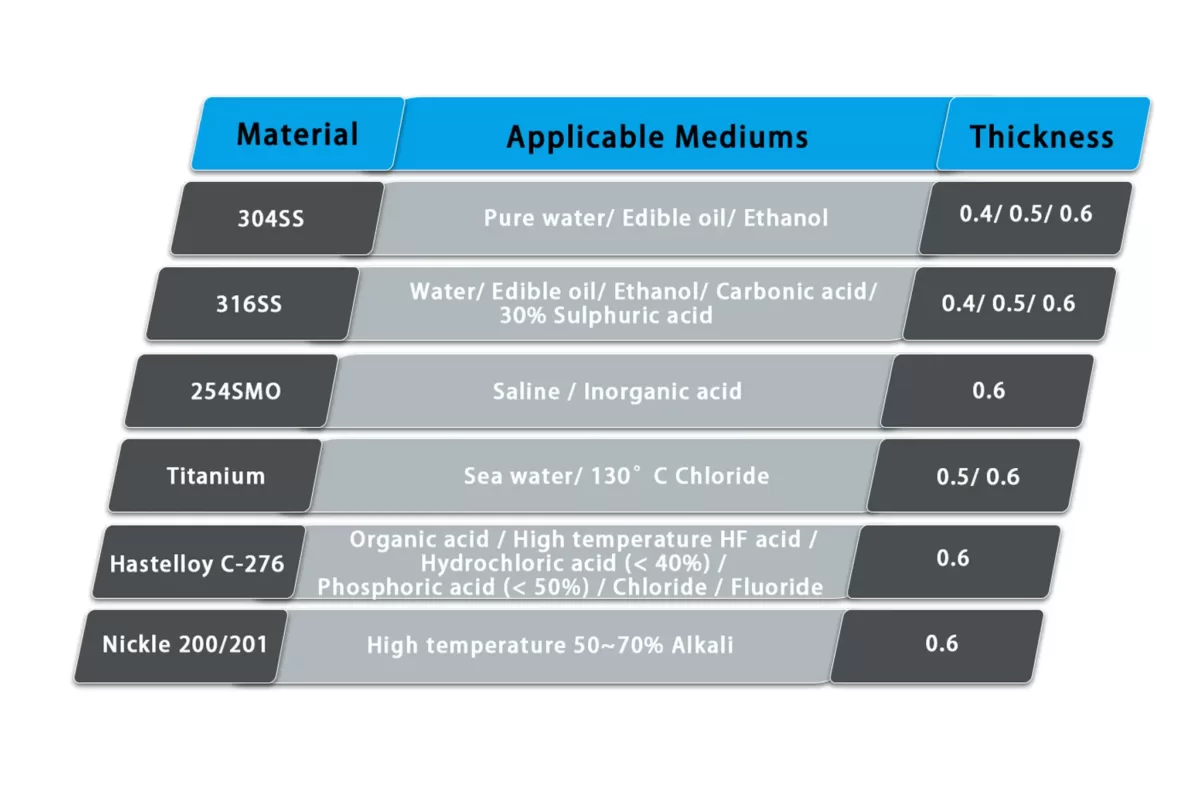

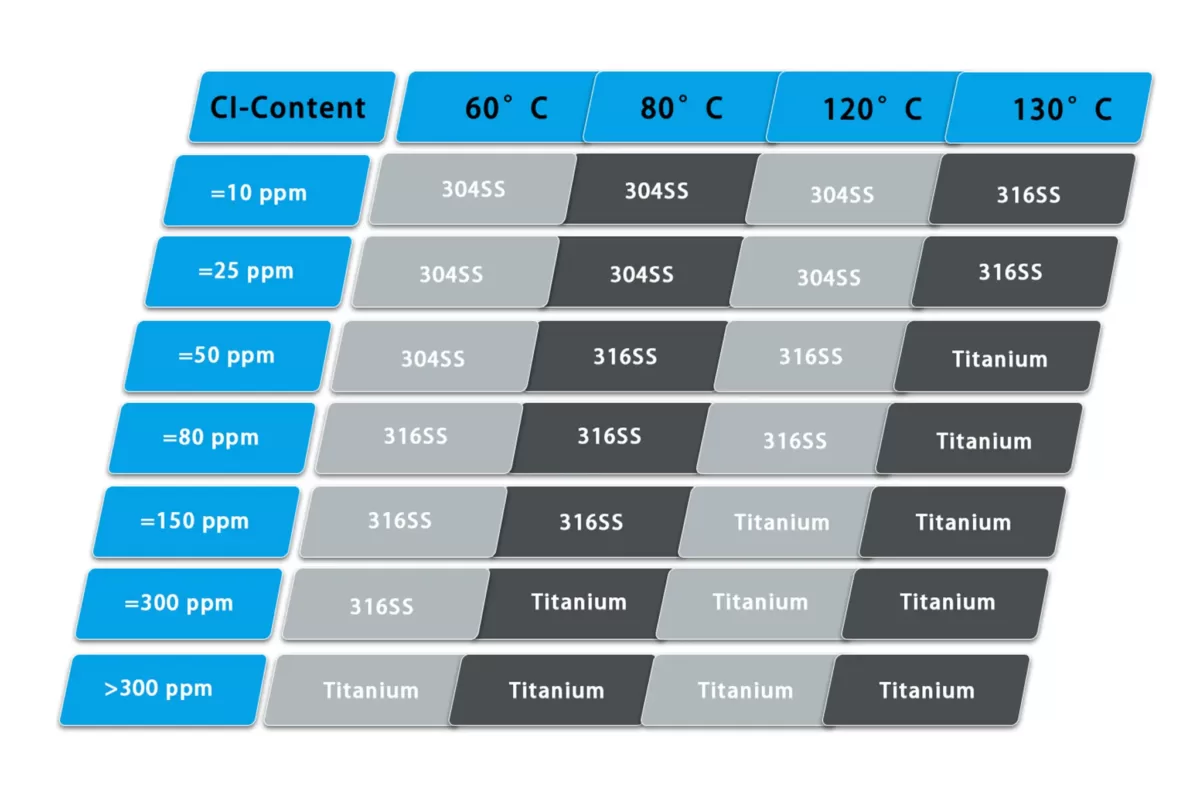

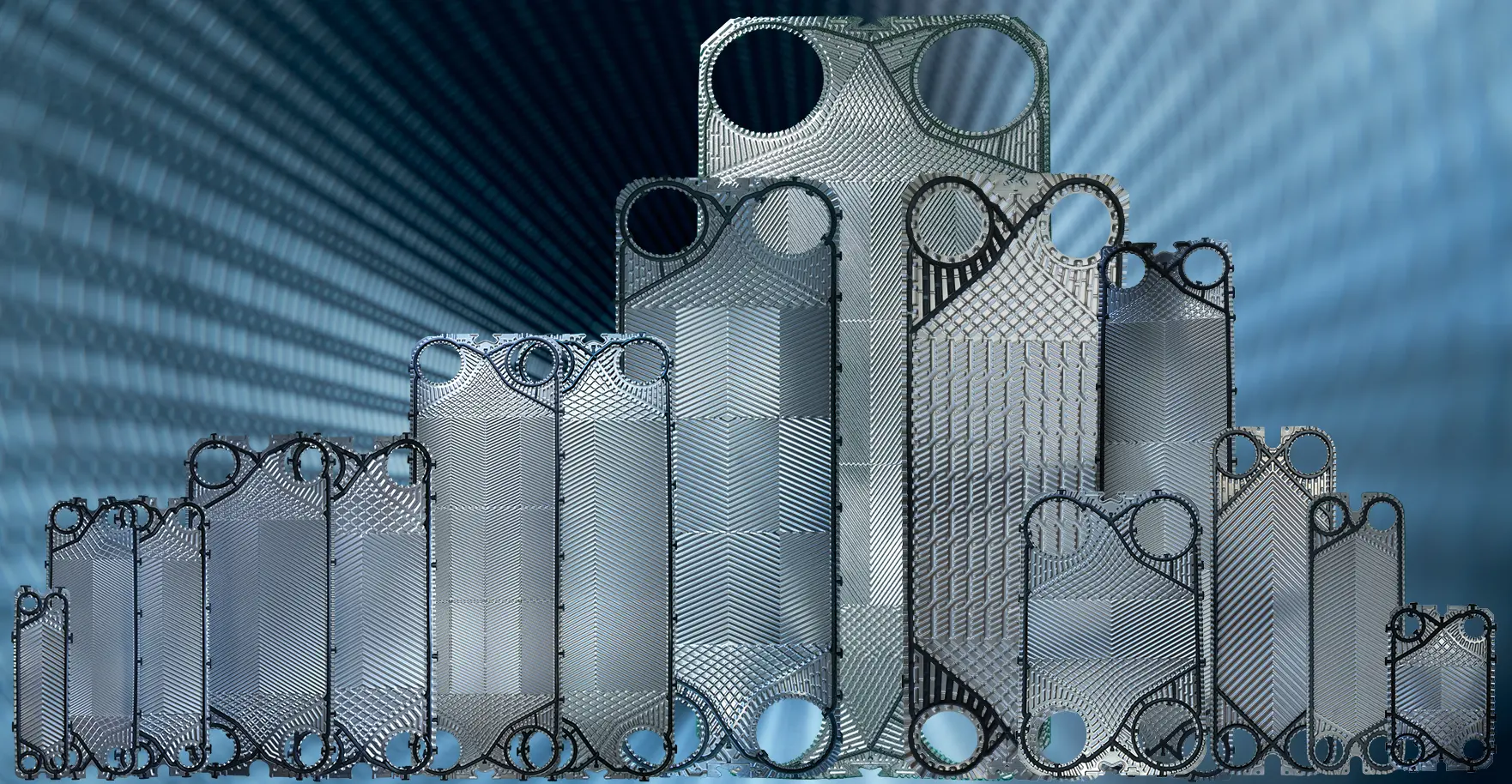

Plates
  • Stainless steel AISI304, AISI316
  • Titanium
  • Nickel, Alloy C-276
  • 254 SMO
  • Free-flow

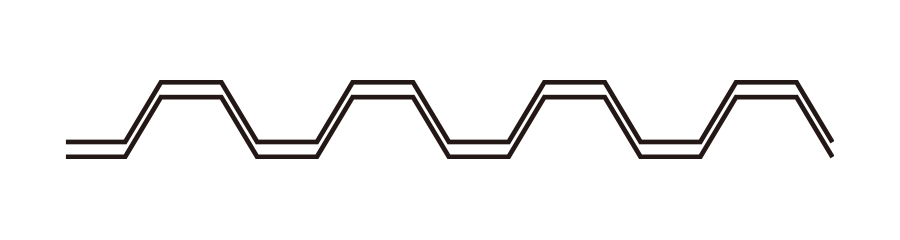

  • Double-wall

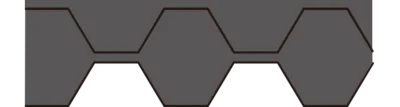

  • Wide-gap
  • Semi-welded

Table.  Gasket Color Code of Standard Materials and Operating Conditions

Rubber

 Color

 Code

 Shore A hardness  Continue Continue Continue Continue
T MIN T MAX T MIN T MAX
NBR Standard 75±5 -10 110 14 230
NBR Low Temperature 80±5 -20 110 -4 230
NBR High Temperature 75±5 -10 120 14 329
HNBR 75±5 -10 150 14 329
EPDM Standard 80±5 -15 150 5 302
EPDM High Temperature 80±5 -15 165 5 329
NBR Food 80±5 -10 110 14 230
EPDM Food 80±5 -15 150 5 302
FKM A 80±5 -15 190 5 374
FKM G 80±5 -15 190 5 374
NEOPREN/CR 80±5 -5 110 23 230
Note: For specific temperature requirement, please advise us medium and working pressure, we can offer custom solution.

HFM also provides Plate Heat Exchanger Frames and special fasteners and tools.

Any trademarks or logos used throughout this website are the property of their respective owners. Logos are used for brand recognition purposes only. HFMsupplies replacement parts that are specified to fit the above OEM heat exchanger models.
