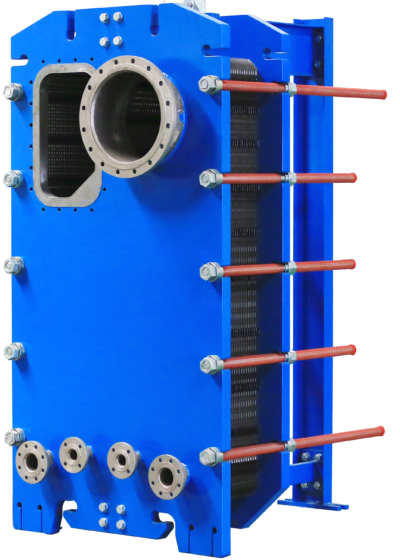

A plate evaporator is an evaporator heat exchanger used to evaporate liquids. It consists of a series of thin metal plates with channels or passages between them, through which the liquid to be evaporated flows. The plates are arranged in a stack and separated by small gaps, allowing for efficient heat transfer. There are seals that are placed between the evaporator plates to prevent any leakage of the liquids or hot fluid.


The most common metals used in plate evaporators are stainless steel, titanium, and nickel alloys, which are chosen for their resistance to corrosion and durability. They are arranged in a way that creates a series of parallel channels. It is designed to take advantage of the large surface area of thin plates to maximize the transfer of heat from a hot fluid to a cold fluid.


Its design provides higher thermal efficiency than the traditional shell-and-tube evaporators and because of this much less heat transfer area is needed. Plate Evaporator are cost-efficient especially when special metal materials are required.

Introducing HFM’s Plate Evaporator: Efficiency Redefined

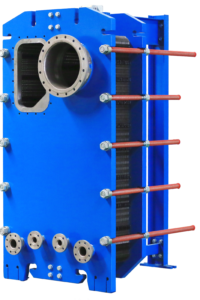

HFM’s Plate Evaporator is engineered to revolutionize liquid evaporation processes. Crafted with durability and precision, our Plate Evaporator optimizes heat transfer while ensuring leak-proof performance. Utilizing semi-welding technology, it efficiently evaporates liquids, making it ideal for various industries such as food, beverage, pharmaceuticals, and chemical plants.


Experience enhanced evaporation and increased efficiency with HFM’s Plate Evaporator, setting new standards in reliability and performance. Elevate your evaporation systems today with HFM’s innovative solutions.

Plate Evaporator

How Does Plate Evaporator Work

The plate evaporators are mainly based on the semi-welding technology of the rising-plate evaporator. One medium evaporates in a channel with a seal, while the steam heating medium condenses in the welded channels.


During operation, the hot fluid flows through the wider channels from the bottom of the evaporator plates, while the liquid being evaporated flows through the narrow channels. Heat is transferred from the hot fluid to the liquid through the evaporator plates, causing the liquid to evaporate and the hot fluid to cool down. The product flows upward along the wall of the plate under the action of a large amount of instantaneous steam. The evaporated liquid is then removed as vapor, leaving behind a more concentrated liquid.


It is commonly used in the food, beverage, and pharmaceutical industries for applications such as concentrating juices, syrups, and other liquids. They are also used in chemical and petrochemical plants for various evaporation and concentration processes. Typical applications for Plate Evaporator are sugar refinery evaporation systems, sweeteners evaporation systems, bioethanol, and caustic evaporation. It is also suitable as a thermosiphon reboiler.

Why Use HFM Plate Evaporator?

HFM Plate Evaporator sets the standard for efficiency and versatility in liquid evaporation processes. Recognized for its exceptional heat transfer efficiency, compact size, and cost-effectiveness, our Plate Evaporator is the preferred choice across various industries.

    • Efficiency Maximization – HFM Plate Evaporator redefines efficiency in liquid evaporation. With its advanced design, it ensures maximum heat transfer efficiency, optimizing productivity and minimizing energy consumption.

    • Space-Saving Design – Designed for versatility and adaptability, HFM Plate Evaporator’s compact size allows for seamless integration into diverse production environments. Its space-saving design frees up valuable floor space while accommodating varying liquid volume requirements.

    • Unmatched Reliability – Trust in the reliability of HFM Plate Evaporator for consistent performance. With certifications including GRG, FDA, and SGS certifications, it meets the highest quality and safety standards, providing peace of mind and minimizing the risk of production disruptions.

    • Energy Cost Reduction – Experience significant energy cost savings with HFM Plate Evaporator’s innovative heat loss reduction features. By minimizing energy consumption, it not only enhances operational efficiency but also aligns with sustainability objectives, reducing environmental impact.

    • Minimal Maintenance – Enjoy hassle-free operation with HFM Plate Evaporator’s low-maintenance design. Engineered without moving parts, it minimizes maintenance requirements, reducing downtime and associated costs, and ensuring uninterrupted production.

    • Customization Options – Tailored to your needs, HFM Plate Evaporator offers customizable options for dimensions, materials, and configurations, ensuring optimal performance for your specific requirements.

Plate Evaporator

Structure of Plate Evaporator

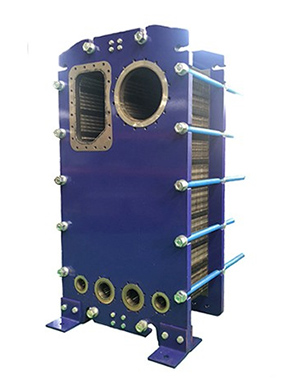

Gasketed & Hang-on frame design


Flow section and flow path with rising plate


Non-glued gasket sealing

Basic Parameters of Plate Evaporator






Recommended Applications of Plate Evaporator

Application of Plate Evaporator
