What is a Brazed Plate Heat Exchanger and How Does It Work

What is a Brazed Plate Heat Exchanger

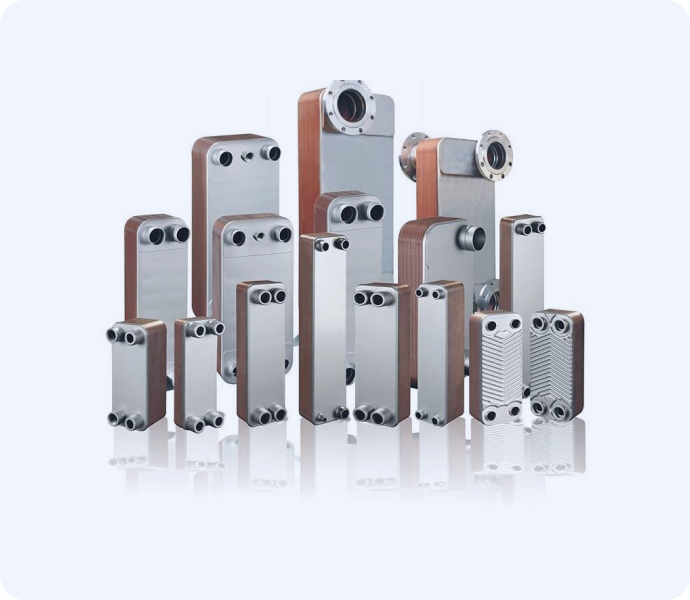

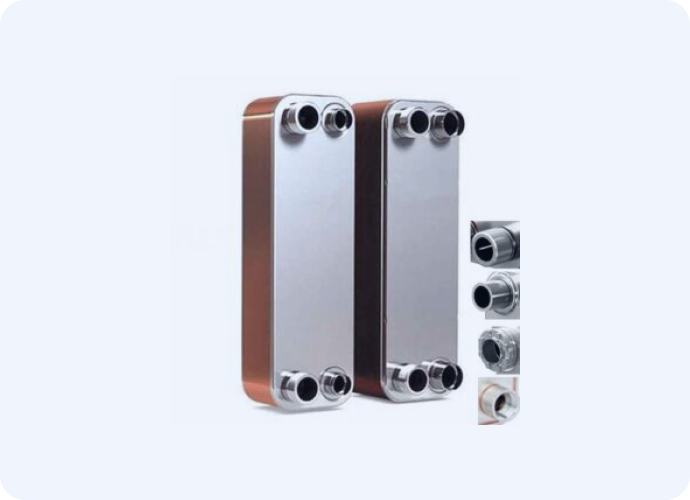

What are brazed plate heat exchangers? A brazed plate heat exchanger is a highly efficient, compact, and versatile liquid to liquid heat exchangers used for transferring heat between two fluids. It consists of a series of thin, corrugated plates that are stacked and brazed together using a copper or nickel alloy. A brazed plate heat exchanger (BPHE) is also known as a brazed heat exchanger.



Thin rectangular channels are formed between various plates, and heat exchange is carried out through the plates. This design creates a large surface area for heat transfer, resulting in high thermal efficiency and low-pressure drop.



BPHEs are widely used in a range of applications such as HVAC, refrigeration, industrial processes, electric vehicles (EV) and renewable energy systems, etc. They offer several advantages over other heat exchanger types, such as easy maintenance, low fouling, and high resistance to pressure and temperature.



Brazed Plate Heat Exchangers can be used for a range of functions in a heating or cooling system – they can act as condensers, evaporators, oil or gas coolers, and be used for other functions that involve the transfer of heating or cooling.

How Does a Brazed Plate Heat Exchanger Work

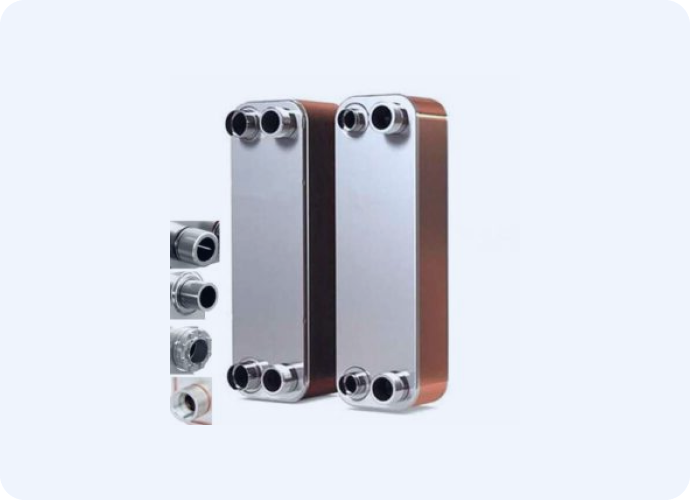

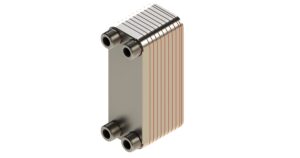

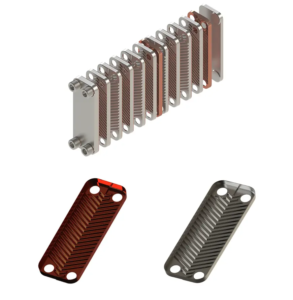

The brazed plate heat exchanger working principle is constructed as a package of corrugated channel plates between the front and rear cover-plate packages. The cover-plate packages include sealing plates, blind rings, and cover plates. Connections are mounted on the cover plates and can be customized to meet specific application requirements.



During the vacuum-brazing process, a brazed joint is formed at every contact point between the base and the filler material. This design creates a heat exchanger that consists of two separate channels or circuits.



Sealing plates are used to seal off the space between the cover plate and the first and last channel plates. The number of cover plates varies, for example with the type and size of BPHE and its pressure rating. Some BPHEs have a blind ring to seal off the space between the channel plate and cover plate. In others, the blind rings are integrated into the cover plate and first/last channel plates.



There are different BPHE product categories depending on material combinations and design pressures. The standard plate materials are AISI 316 stainless steel, S, vacuum-brazed with a pure copper filler, C, or a nickel-based filler, N. For demanding applications, the plates can be made of SMO 254, stainless steel with a higher content of molybdenum.

How is a Brazed Plate Heat Exchanger Made?

The production process of brazed plate heat exchanger mainly includes:

A. Raw Material Reserve

B. Plate Pressing

C. End Plate Pressing

D. Stacking Compaction

E. Vacuum Furnace Brazing

F. Leak Test

G. Pressure Test and Other Processes.

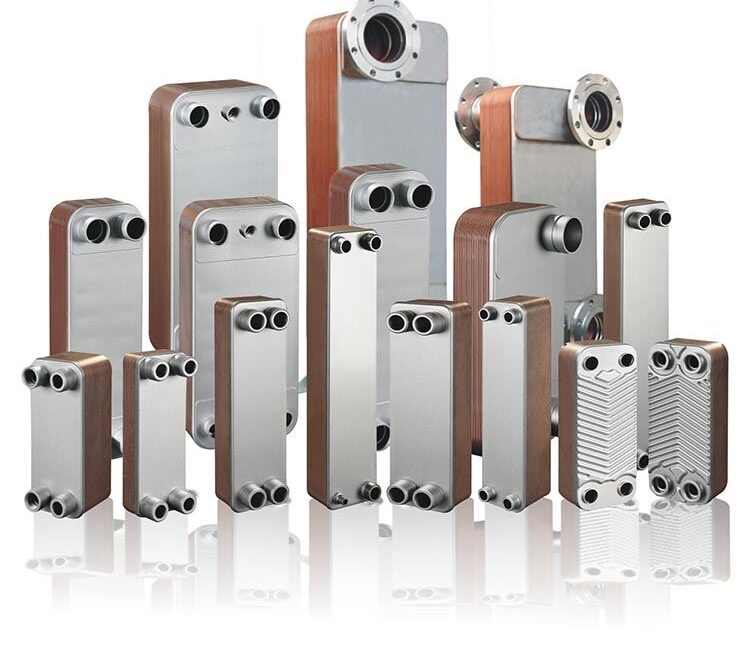

Brazed Plate Heat Exchanger

Brazed Plate Heat Exchanger Plates and Channel Types

Certain BPHEs are available with different types of channel plates where the herringbone pattern varies. The benefit of different herringbone patterns is that the hydraulic and thermal characteristics of the BPHE can be modified. For example, two BPHEs can have the same pressure drop on both sides despite different flow rates.



The fluids can pass through the heat exchanger in different ways. For parallel flow BPHEs, there are two different flow configurations: co-current and counter-current.

  1. Co-current flow
  2. Counter-current flow



There are several different versions of the channel plate packages. Examples include:

  1. Dual-circuit BPHE
  2. Two-pass BPHE, which corresponds to two units connected in series.
  3. Dual-over-two-pass BPHE

Why use Brazed Plate Heat Exchanger?

A brazed plate heat exchanger (BPHE) is utilized for its high heat transfer efficiency, compact size, and cost-effectiveness. It offers versatility, quick response times, and easy maintenance. These advantages make BPHEs an excellent choice for various applications, including HVAC, refrigeration, electric vehicles(EV) and more. Other advantages of brazed plate heat exchanger include:



Compact – Our brazed plate heat exchanger are extremely compact compared with other technologies. The carbon footprint can be as little as 10% of that of a shell and tube heat exchanger or half that of a gasket plate heat exchanger.

Efficient – With no need for gaskets or supporting equipment, about 95% of the brazed plate heat exchanger material is used to transfer heat. The highly turbulent flow also enables you to use small temperature differences efficiently.

Reliable – The robust construction of brazed plate heat exchanger requires no gaskets, eliminating their risk of leaking. This means stable thermal and hydraulic performance, with minimal maintenance and operational downtime. At HFM, we strictly adhere to the highest standards of quality and safety, ensuring all of our products meet the rigorous requirements of GRG, FDA, and SGS certifications.

Flexible – The brazed plate heat exchanger’s compact size uses space efficiently and makes the system design more flexible. Larger installations can be constructed unit by unit via standard doors and elevators, and it is easy to expand capacity when demand increases.

Cost-effective – You will save on energy, maintenance, spare parts, and installation. The life-cycle cost over 15-20 years can often be half that of a corresponding gasket solution.

Self-cleaning – Our brazed plate heat exchanger are normally self-cleaning, thanks to highly turbulent flows. In applications with a high risk of fouling or scaling, Cleaning in Place is easy without disassembly. Read more about plate heat exchanger cleaning.

Customized – By combining plate design, materials, and connections from standard components, we keep lead times short while still maximizing output in your specific application. Fill out our Specification Form below to fulfill your requirement now!

Find Out More on our HFM Youtube Channel regarding the BPHE Production Process

Basic Parameters of Brazed Plate Heat Exchanger

Plate Materials: 316,0.4mm



Foiling Materials: Copper/Stainless Steel/Nickle



Design Pressure: Max 45bar



Design Temperature: -196~225℃

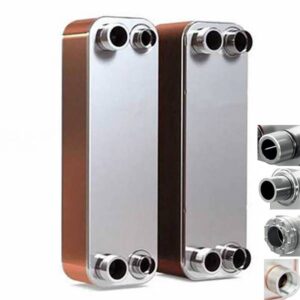

HFM Brazed Plate Heat Exchanger

Recommended Applications of Brazed Plate Heat Exchanger

Application of Brazed Plate Heat Exchanger

Have specific requirements for your Brazed Plate Heat Exchanger?



Fill up our specification form below and our dedicated specialist will contact you for your customised BPHE Design.
