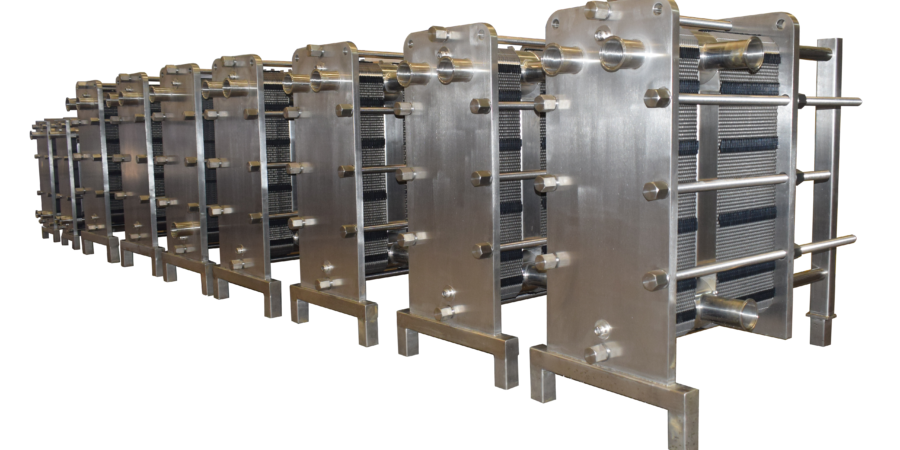

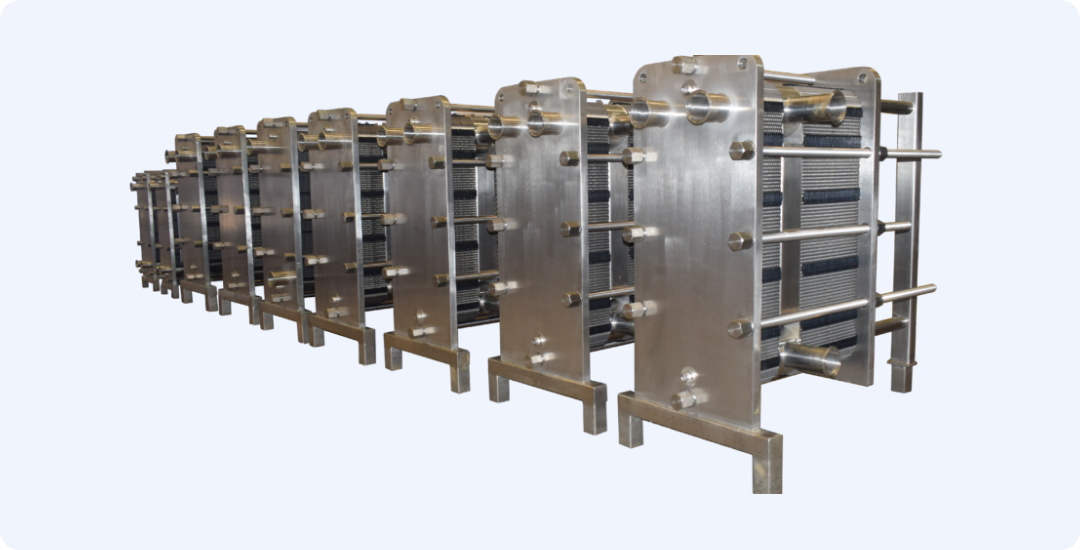

Multiple Multi-section Plate Heat Exchanger

What is a Multi-section Plate Heat Exchanger and How Does It Work

What is a Multi-section Plate Heat Exchanger

Multi-section plate heat exchanger is also a kind of gasket plate heat exchanger. The multi-section plate heat exchanger can be used for heating and cooling two or more media, usually sectioned by an intermediate partition, and can be constructed into two, three, or four sections, etc. The intermediate partition plate has connection holes for passing the medium. Usually, the intermediate partition material is 304 or 316.

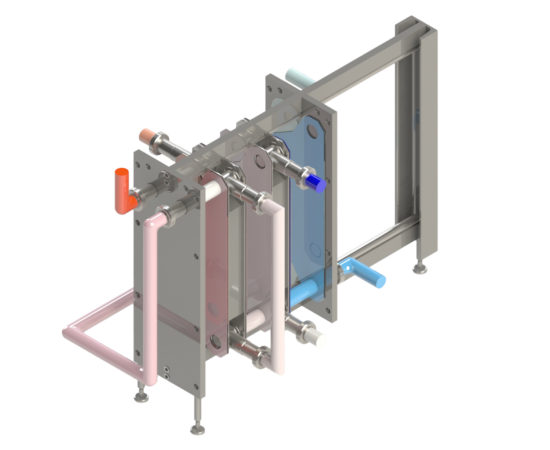

How Does a Multi-section Plate Heat Exchanger Work

In a multi-section plate heat exchanger, multiple sets of plates are arranged in sections, allowing for greater flexibility and control over the heat transfer process. Each section can be designed to optimize heat transfer for a specific application or to accommodate different flow rates and temperatures.


Multi-section plate heat exchangers are commonly used in a variety of industrial and commercial applications, including heating and cooling systems, chemical processing, and food processing. They are highly efficient and compact, making them a popular choice for applications where space is limited or where energy efficiency is a top priority.


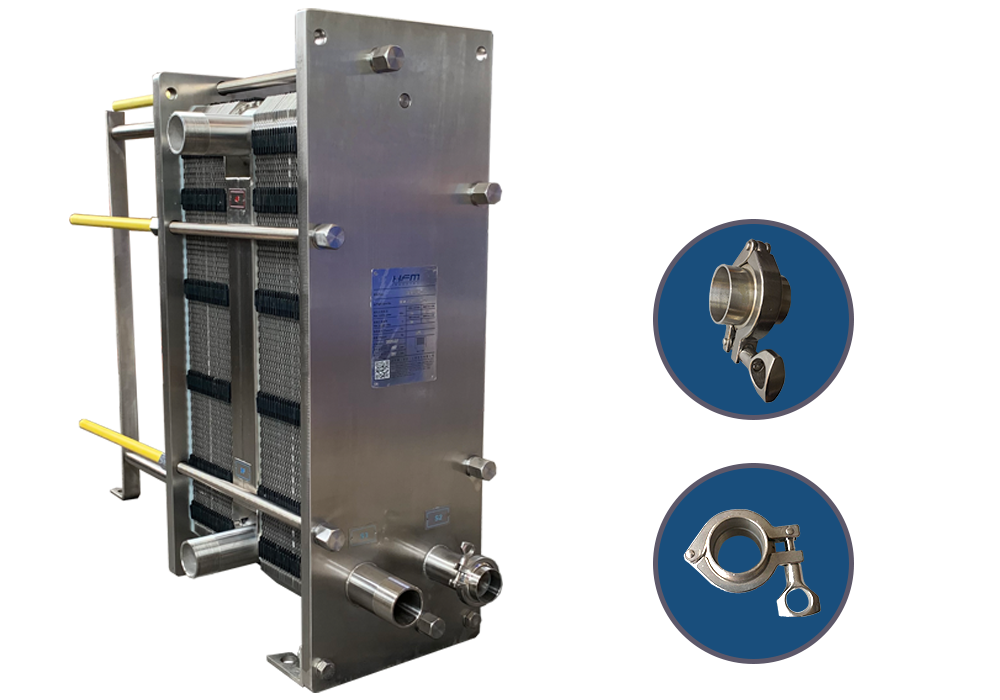

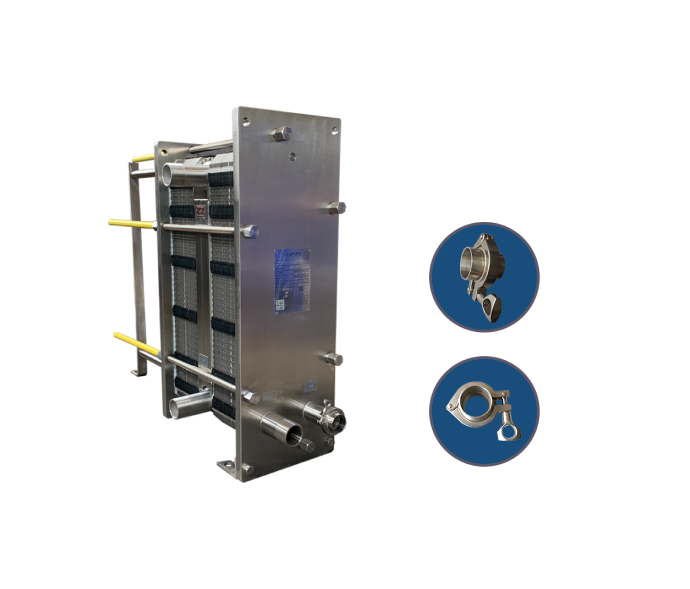

Multi-section Plate Heat Exchanger Structure

Multi-section plate heat exchanger has plates and rubber gaskets that meet the food grade requirements, and the parts in contact with the medium are all made of stainless steel, and the frame can also be made of stainless steel. It is the hygienic plate heat exchanger.

Advantages of Multi-section Plate Heat Exchanger

High heat exchange efficiency – Improved temperature approach, true counter-current flow, and significantly less hold-up volume (up to 80-90% less).


Convenient for maintenance – Easy for disassembly and cleaning.


Quick Expansion Allows the expansion of capacity through the adjustment of the number of plates.


Reliable – At HFM, we strictly adhere to the highest standards of quality and safety, ensuring all of our products meet the rigorous requirements of GRG, FDA, and SGS certifications.

Basic Parameters of Multi-section Plate Heat Exchanger

Plate Material: mainly 304,316L


Plate Thickness: 0.5mm-0.6mm


Frame Material: CS,C S coated with 304 / 316 & Pure stainless steel 304 / 316


Material of intermediate partition: Stainless steel 304 / 316


Gasket Material:NBRF,NBR-HTF,EPDMF


Design Pressure: 10bar


Design Temperature: -20 ° to 150 °
