Based on the general design scheme, the Fresh Water Generator which mainly consists of an evaporator and a condenser, ejector equipped for vacuum, as well as relevant accessories for the system.
Furthermore the whole control system is to be designed as maker standard in according to our design purpose. Subject salinity meter is exclusively composed by maker, the design scheme include temperature compensation.
The system designed under rough sea condition. That is for 32℃ sea water and 80℃ cylinder jacket cooling water. Under such circumstance, the unit can reach distillate production capacity of 12 t/d. Each unit consists of an evaporator and a condenser installed in a same chamber.
- Home
- Plate Type Fresh Water Generator
Design Criteria
Models
| Type | Capacity(t/Day) | Dimension(LxWxH mm) | Weight(kg) | Operation Weight(kg) |
| FWG-3 | 3 | 1240x1020x1130 | 400 | 550 |
| FWG-5 | 5 | 1240x1020x1130 | 400 | 500 |
| FWG-7 | 7 | 1240x1020x1130 | 420 | 570 |
| FWG-8 | 8 | 1400x1050x1500 | 650 | 770 |
| FWG-10 | 10 | 1400x1050x1500 | 660 | 780 |
| FWG-12 | 12 | 1400x1050x1500 | 670 | 790 |
| FWG-15 | 15 | 1700x1400x1700 | 830 | 1130 |
| FWG-18 | 18 | 1700x1400x1700 | 840 | 1150 |
| FWG-20 | 20 | 1700x1400x1700 | 850 | 1160 |
| FWG-25 | 25 | 1700x1400x1700 | 870 | 1190 |
| FWG-30 | 30 | 1700x1500x1700 | 920 | 1280 |
| FWG-35 | 35 | 1750x2460x2000 | 1320 | 1560 |
| FWG-40 | 40 | 1750x2760x2000 | 1430 | 1680 |
Components

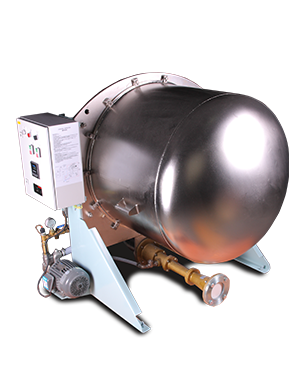

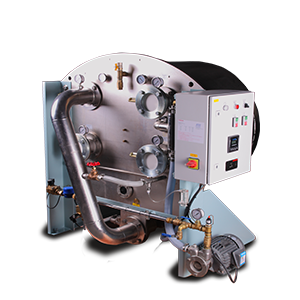

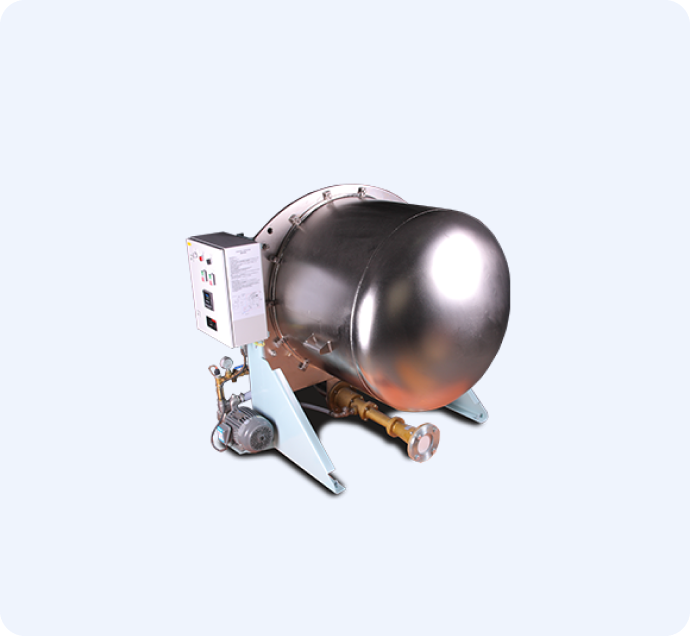

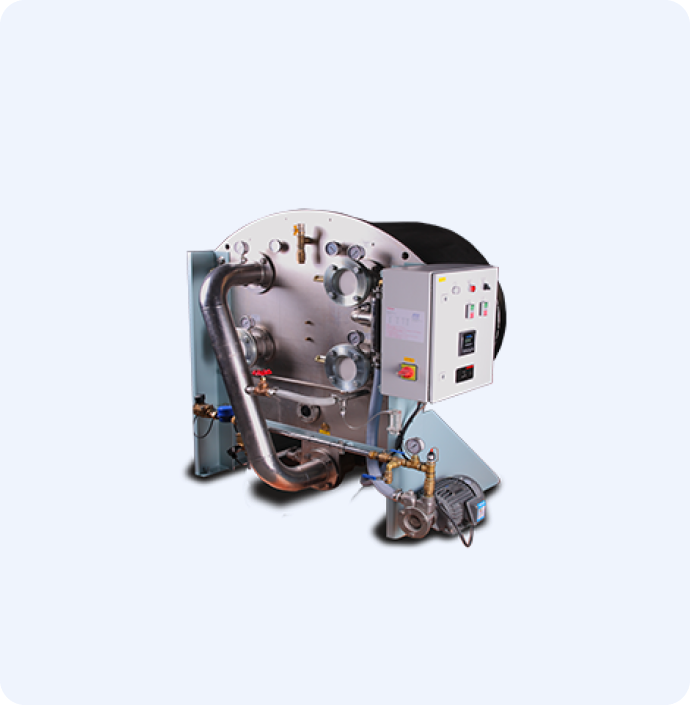

Plate Type Fresh Water Generator mainly consists of evaporating, condensing chamber, ejector equipped to achieve
vacuum, fresh water pump for delivering distilled water to storage tank. Heat exchanger is made of titanium. It’s
an energy-saving device because of using jacket water heat and lower boiling point of water in vacuum.
Features:
– High quality titanic plate for evaporator and condenser
– Highly compatible to variety heating sources as jacket water, steam and thermal oil
– Control cabinet with specialized salinity meter
– No moving part, less maintenance
